Our daily lives depend heavily on electricity, not notably for lighting and running home appliances. But users need to take the proper safety measures to avoid even electrical lines becoming harmful. How to cap off electrical wires? To keep active electrical lines safe at home, utilize the following helpful advice.

Wire Caps

A quick and reliable method of connecting wires is by using wire caps. With most little wires, wiring caps may be used to join them, regardless of the kind. They are made up of cap-like components with an interior body made of copper.

You could connect a wire capping after inserting two wire terminals into its body. By crimping its wire capping, you may make the conducting inner thing fall over the cables’ ends. Between lines that they are utilized with, wire covers guarantee electrical properties.

Live Wires With A Cap Off

When performing home renovations or electrical repairs, capping wires might be helpful. If these cables are uncovered, they might shock someone with electricity. When there are several cables, the cap must accommodate the number of strands in that wire gauge.

To prevent it from unscrewing after becoming fastened in place, its caps need to grasp the wires firmly. In order to prevent the lids from slipping, users can twist the electrical cables if they cannot fit within the covers. The white, black, plus ground lines may all be covered up.

How come live wires should be capped?

In order to reduce the chance of electric shocks, live power cables must be capped. Touching an exposed electric cable can be extremely dangerous because electrical cords can start fires.

It is not usually necessary to get an electrical permit in order to terminate an electrical line with such a wire cap. However, it frequently forms a component of a bigger undertaking that needs an electrical or construction permit.

How to cap off electrical wires?

To disconnect a gadget from a circuit securely, wires must be sealed off. Before capping off the power cables, gather all the necessary equipment, tidy up the area, and afterward adhere to the instructions.

Required Resources

  • Cutting or stripping of cables.
  • Tape for electrical wires.
  • Screws with a flat head.
  • Tester for an applied pulse.
  • Cable nuts.
  • Organizer’s knife
  • Wall Plates in Black.
  • Box of controls.


Step 1: Disconnect the main fuse from the circuits you’ll be shutting off or flip your circuit breaker out. Although it’s a standard practice for professionals to cap up hot cables, a novice electrician should wait to try it.

Step 2: Trim the wiring ends to where they are level only with insulating so you’ll be able to operate with such a segment of conductor that is precisely straight. The cable cutters should be used to remove one inch of insulation from the end of the connection that will be sealed.

Step 3: Tighten a wiring nut around the striped circuit. Ensure that the wire nut is secure by tugging on it using the opposite hand while maintaining the cable securely with the other. To further ensure that a wiring nut didn’t come undone after being securely fastened, tape both wire screw and cable together.

Step 4: Keep going back and forth between steps 2 and 3 to cap all connections. Place an empty covering on the gadget box, illumination outlet packet, draw box, circuit board, or any other box where the cables you sealed off are located.

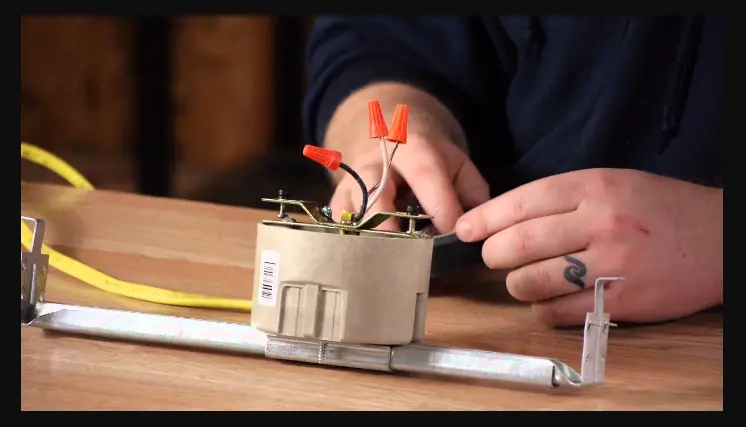

How To Cap Off Live Electrical Wires (Safely)

When can the wires be covered with caps?

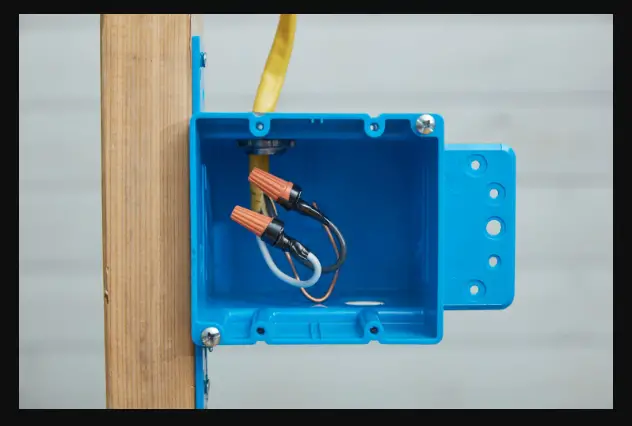

How To Cap Off Electrical Wires?

Before installing plasterboard on the foundations, it is often simple to work with your electrical lines. The wires could be pulled back to a beginning or intermediary location, such as another electrical panel, in the path of the power supply board.

In that scenario, it is possible to stripe the electrical wires inside the direction of the electricity box upstream before utilizing it as the endpoint. As a result, you won’t have to go through the hassle of purchasing a second input jack containing capped cables and empty shear walls.

Removing the power lines down to the service committee’s circuit breaker might be a workable alternative. Only when the drywall has now been taken down can a whole house be renovated.

Copper For Electrical Wiring: The Science Behind It

rlc talk

Best habits to remember

To enhance overcurrent protection, constantly follow the directions on your appliances.

Follow the Manual

The number one advice for household electrical security must be to “follow the manual.” The functionality of your gadget and your physical security are enhanced by understanding household appliances’ security. If any device shocked you electrically, even slightly, put it out of commission until a licensed electrician can examine it for issues.

Avoid Kinks When Uncoiling Cable

Straightening out the wire will make it much simpler to pull plastic-sheathed wire past gaps in the structure.

Neatly assemble electric panels

The problem of an overcrowded electrical box is something you’ve encountered unless you’ve completed a lot of cabling.

Prior to connecting any wires, test them

It’s simple to become comfortable concerning whether the electricity is off after doing a lot of cabling, and don’t! Inspect each wire inside the wiring box or other location where you are operating using a noncontact voltage tester.

To maintain the security of your house, replace or fix faulty electrical wires

Both electrical and extension cables have to be routinely inspected for indications of tearing and breaking, and these ought to be fixed or replaced as necessary.

If you often use extension cables, you might need more receptacles to meet your demands. Install more plugs in the areas of your home where you frequently use power cables by hiring a certified electrician who is familiar with electric safety regulations.

To prevent overheating, allow your equipment adequate room for air movement

Electrical appliances that aren’t correctly ventilated risk overheating, shorting out, and accidental fire. Ensure appropriate airflow for your devices, and refrain from operating electronic systems in overhead cabinets. Keep a close eye on your gasoline or dryer since they must be placed at least one foot beyond the wall in order to operate securely.

How Many Lumens Is an iPhone Flashlight – The Exact Answer

rlc talk


Q: How should I correctly remove the wires prior to capping?

A: Remove roughly 1/2 inch of insulating from the wire terminals with a wire remover. For each cable that is going to be connected, make sure you remove the same quantity of insulating.

Q: How should the cable nut be correctly twisted over onto cables?

A: While holding the stripping endpoints of the cables close, clockwise-twist the wiring nut out onto the strands. Verify that each wire is tightly intertwined with the others and that the wiring nut is now firmly seated on the cables.

Q: Will electrical tape work to cover exposed wire ends?

A: Even though electrical tapes can be utilized to seal off connections, it is not advised to employ them as a long-term fix. During this time, electrician tape has a tendency to dry up, grow loose, as well as lose its adhesion. The superior and safer option for closing off power wires is wire nuts.

Finishing up

Just now, a detailed description of the provided situation on how to deal with active electrical cables was given. If you’re confused about it, that’s entirely OK. If so, get in touch with electrical, who will handle it on your own. If you’re taking it alone, gather the necessary tools and protection gear.
