What is SME fiber?

There are many different types of fiber available on the market today, and SME fiber is one of them. This type of fiber is made from various materials, including glass, plastic, and metal. It is used in various applications, including data transmission, telecommunications, and optical fiber cables.

Let’s discover what SME fiber is and some other things you need to know about fiber optic cables.

What Does SME Fiber Mean?

What Does SME Fiber Mean

As you may know, fiber optics are becoming increasingly popular today. They offer many benefits over traditional copper cables, including higher bandwidth and faster speeds. However, there are different types of fiber optic cables, each with its advantages and disadvantages.

One type of fiber optic cable is a single-mode optical fiber or SME fiber. This type of cable is made up of a single glass or plastic core that is surrounded by cladding material. The core is much thinner than the cladding, and the cladding has a lower index of refraction than the core.

Single-mode optical fiber is a type of fiber optic cable that is used to transmit light signals over long distances. This type of fiber comprises a thin glass or plastic core surrounded by cladding material. The core and cladding are made of materials with different refractive indices, which cause the light to travel through the fiber in a single mode.

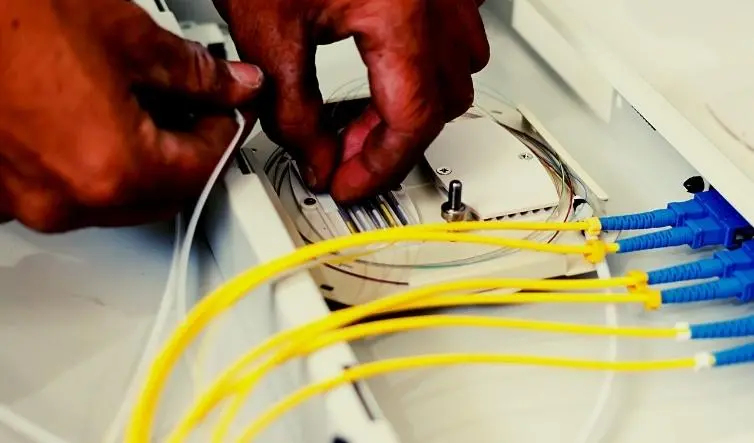

SME’s optical fiber distribution frames have been designed to ensure the connection between the network’s O.F. cables and the central equipment’s O.F. ones. It can also enable the connection among fibers coming from different network cables.

Single mode fiber types

Single mode fiber types

We all know that there are five types of multimode fiber: OM1, OM2, OM3, OM4, and OM5. Single-mode fiber types fall into two categories: OS1 fiber and OS2 fiber, both of which are SMF fiber specifications.

Standard single-mode optical cables with maximum attenuations of 1 dB/km and 0.4 dB/km are known as OS1 and OS2. They are used with wavelengths of 1310 nm and 1550 nm, respectively.

OS1 fiber is a tight-buffered cable capable of use in indoor applications (such as campuses or data centers) with a maximum distance of 10 km. OS2 fiber is a loose tube cable capable of outdoor applications (such as street, underground, and burial) with a maximum length of 200 km.

Gigabit and 10G Ethernet links are supported by fiber optic cable OS1 and OS2, respectively. OS2 fiber can also support 40G and 100G Ethernet links.

Single mode fiber optic cable specifications

single mode fiber optic cable specifications

Single-mode fiber cable carries light to transmit signals over great distances. A single fiber strand transmits a light ray (mode) down the line. Compared to multimode fibers, the single-mode cable allows for longer transmission distances of up to 100 km while maintaining the integrity of the light pulses.

Higher bandwidth applications use single mode fiber optic cables. They have a 9-micron-small core size. The single-mode fibers used in communication cables have a wavelength of either 1310 or 1550 nm.

The specifications for single-mode optical fiber cables are OS1 and OS2. The maximum bandwidths and distances for single mode are 10 km for 10-gigabit Ethernet at 1310 nm and 80-100 km at 1550 nm. 10km at 1310nm for 1000Base-T and 80–100km at 1550nm.

Specific rules apply to OS1 and OS2 single-mode cable categories. OS1 is designed for use indoors. The OS2 category is appropriate for outdoor use as well. Planning for Gigabit Ethernet is advised over multimode fiber; single-mode fiber.

The multiple light modes in multimode fiber can lead to distortion and quality degradation on the receiving end of protracted data transmission. Single-mode fiber optic networks are frequently used in LANs in universities and businesses.


What is SME fiber

How many modes are in single-mode fiber?

There are four modes in single-mode fiber.

Is all single-mode fiber 9 microns?

Yes! Since the core of the single-mode fiber is much smaller, at only 9 microns, only one ray of light can pass through it (mode.)

What is the maximum distance for single mode fiber?

The maximum distance for single-mode fiber is 4o km.

Is LC single mode or multimode?

Single mode and multimode tolerances are available for L.C. connectors. It also has LC/UPC and LC/APC polish for single mode.

Watch: Fiber optic cable: Multimode vs Single-mode
